[Share] Installasi openmeeting v.2.1 di Ubuntu 12.04 [updated]

OpenMeetings adalah perangkat lunak berbasis browser (opensources) yang berfungsi untuk membuat sebuah konferensi di Web. Anda dapat menggunakan mikrofon atau webcam, berbagi dokumen pada whiteboard, share screen atau record meetings.
saya menggunakan openmeeting v.2.1 OS Ubuntu Desktop 12.04 LTS di mesin Virtual ,
file yg dibutuhkan openmeeting

- ffmpeg bisa menggunakan versi terbaru
- ImageMagick gunakan versi terbaru
- swftools gunakan versi terbaru
- flash player terbaru untuk linux
- Java terbaru untuk linux

Download openmeetings : download , apache download

Pertama Install Dahulu Ubuntu 12.04, kemudian setting :
-setting hostname : nano /etc/hostname
openmeetings.domain.co.id     (domain anda)
- setting hosts        : nano /etc/hosts
127.0.0.1       localhost
192.168.1.168   openmeetings.domain.co.id      openmeetings

- setting resolv.conf : nano /etc/resolv.conf
nameserver 192.168.1.168 (ip server)
nameserver 192.168.1.202   (ip gateway)

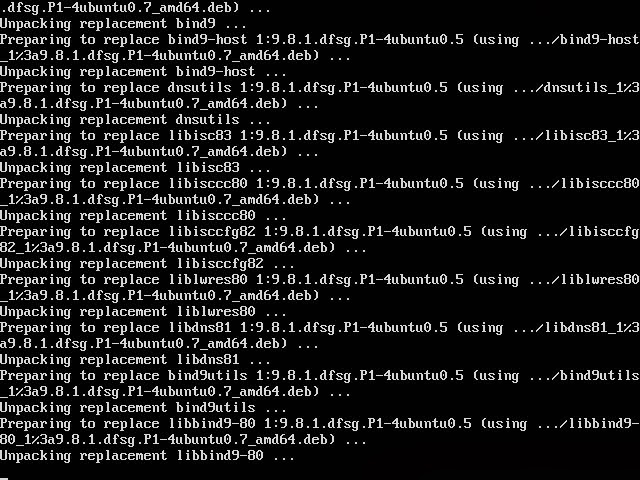

update dan upgrade system
# apt-get update

# apt-get upgrade

# apt-get install ubuntu-desktop

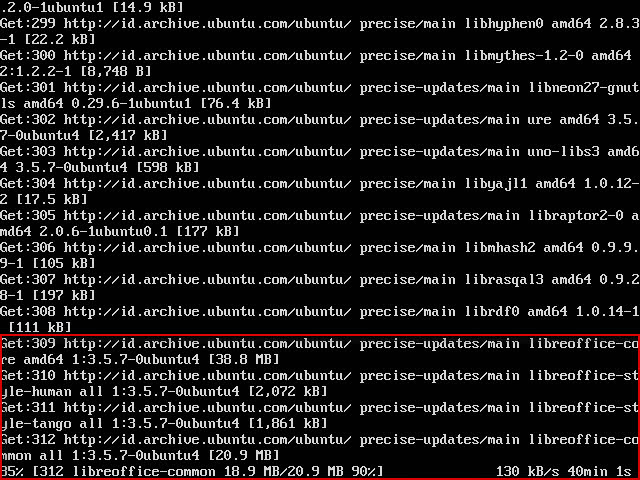

kenapa saya install desktop nya karena saya saya install server minimal selalu gagal install paket2nya , seperti openoffice.org

kemudian memerlukan Adobe Flash Player: download di
http://www.adobe.com/support/flashplayer/downloads.html

klik : Get the latest version
Pilih Operating system 32 bit atau 64 bit dan pilih linux.tar.gz

Download Now

Buka Home Folder
/home/username_anda
tekan ctrl+h (show hidden file) , pilih .mozilla
lalu buat folder didalam .mozilla dengan nama plugins
/home/username_anda/.mozilla/plugins

Ektract file flash tadi ke folder : /home/username_anda/.mozilla/plugins ( libflashplayer.so )

Install Oracle Java

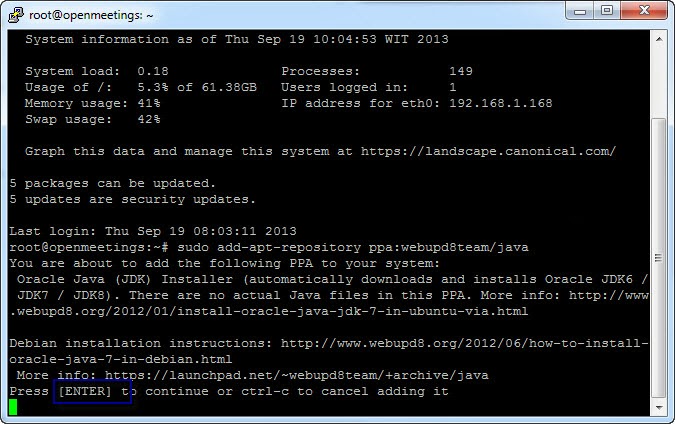

# sudo add-apt-repository ppa:webupd8team/java
# apt-get update
# apt-get install oracle-java6-installer

tekan Enter

# apt-get update

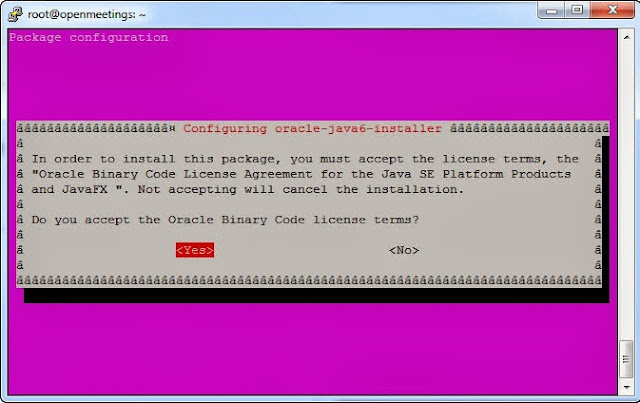

Pilih Yes

tunggu proses installasi ..

# update-alternatives --config java

install Package dan libraries :

# apt-get install imagemagick gdebi libgif4 libjpeg62 synaptic

Download SWFTOOLS, ini digunakan untuk mengkonver file to .swf flash.

masuk browser

Untuk Ubuntu 32 bits:
http://assiste.serpro.gov.br/libs/swftools_0.9.1-1_i386.deb
Untuk Ubuntu 64 bits:
http://assiste.serpro.gov.br/libs/swftools_0.9.1-1_amd64.deb

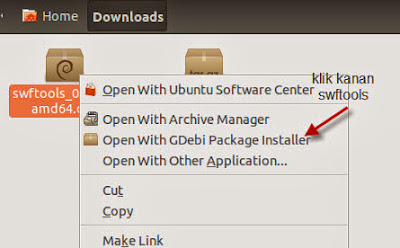

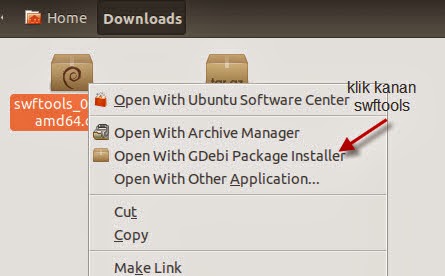

setelah download , untuk menginstall klik kanan di swftool open with Gdebi Package Installer :

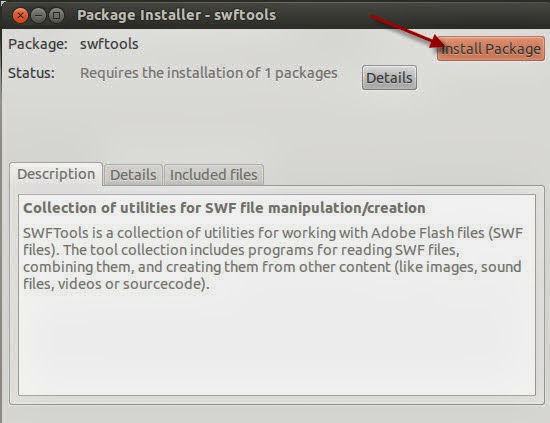

Install Package :

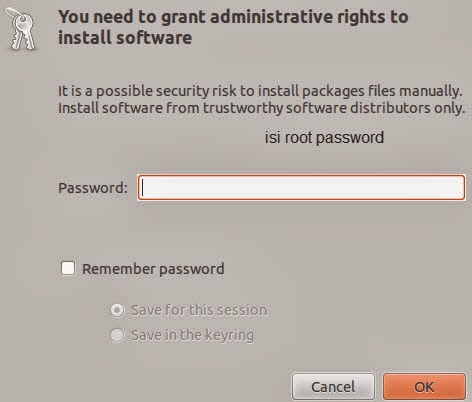

masukan root password :

klik install :

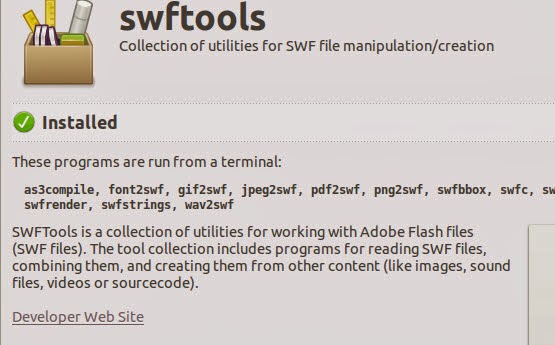

swftools sudah terinstall .

Compile FFMPEG untuk Video

# apt-get install libart-2.0-2 libt1-5 zip unzip bzip2 subversion git-core checkinstall yasm texi2html

# apt-get install libfaac-dev libfaad-dev libmp3lame-dev libsdl1.2-dev libx11-dev libxfixes-dev libxvidcore-dev libxvidcore4

# apt-get install zlib1g-dev libogg-dev sox libvorbis0a libvorbis-dev libgsm1 libgsm1-dev libfaad2 flvtool2 lame

Download ffmpeg dan compile :

# cd /opt
# wget http://ffmpeg.org/releases/ffmpeg-1.1.2.tar.gz
# tar zxf ffmpeg-1.1.2.tar.gz
# cd ffmpeg-1.1.2

./configure --enable-libmp3lame --enable-libxvid --enable-libvorbis --enable-libgsm --enable-libfaac --enable-gpl --enable-nonfree

# make
# checkinstall

press enter jika ada konfirmasi

setelah itu file .deb akan tersimpan di /opt/fmpeg-1.1.2
isi filenya : ffmpeg_1.1.2-1_i386.deb atau ffmpeg_1.1.2-1_amd64.deb

sekarang block ffmpeg compile :
menuju icon logo ubuntu , pilih synaptic package :

pilih package ffmpeg : tab package pilih lock version .

setelah lock version , delete ffmped compiled :

# cd /opt
# rm -R ffmpeg-1.1.2

*MYSQL INSTALL

# cd /opt
# apt-get install mysql-server

berikan root mysql password

mysql -u root -p , lalu isi password mysql

buat database :
mysql> CREATE DATABASE open2final DEFAULT CHARACTER SET 'utf8';

mysql> GRANT ALL PRIVILEGES ON open2final.* TO 'openmeetings'@'localhost'
IDENTIFIED BY '123456' WITH GRANT OPTION;

quit
---------------------------------------------------------------------------------------------------------
* open2final ...nama database yg sudah kita buat sebelumnya
* openmeetings ...username database
* nakaka77 ...password database

Installasi Openmeeting 2.1

download openmeeting : https://builds.apache.org/job/openmeetings/

simpan di /opt/red52
# mkdir /opt/red52
# cd /opt/red52
# wget http://psg.mtu.edu/pub/apache/openmeetings/2.1.1/bin/apache-openmeetings-2.1.1.tar.gz

apabila link diatas sudah tidak bisa , ikuti petunjuk update dibawah :

tunggu proses download

exstract :

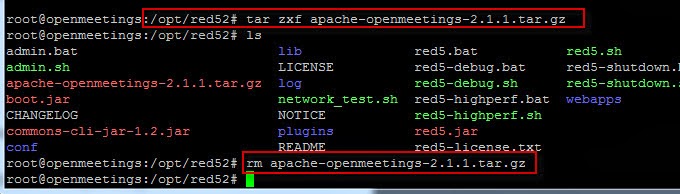

# tar zxf apache-openmeetings-2.1.1.tar.gz
setelah diekstract , Hapus file download :
# rm zxf apache-openmeetings-2.1.1.tar.gz

mv /opt/red52/webapps/openmeetings/WEB-INF/classes/META-INF/persistence.xml /opt/red52/webapps/openmeetings/WEB-INF/classes/META-INF/persistence.xml-ori

mv /opt/red52/webapps/openmeetings/WEB-INF/classes/META-INF/mysql_persistence.xml /opt/red52/webapps/openmeetings/WEB-INF/classes/META-INF/persistence.xml

nano /opt/red52/webapps/openmeetings/WEB-INF/classes/META-INF/persistence.xml

...ubah pada baris :
Url=jdbc:mysql://localhost:3306/openmeetings?....
openmeetings menjadi open2final ...(ini adalah nama database yg sudah kita buat tadi )

ubahpada baris berikut :
, Username=root
, Password="/>
...ubah root to openmeetings ...(ini adalah nama dtabase yg sudah dibuat tadi)
...ubah , Password=nakaka77"/> ,

Konektor mysql

(apabila link dibawah tdk berfungsi - Update nya ada di halaman paling bawah artikel ini )

cd /opt

# wget http://mysql.azc.uam.mx/Downloads/Connector-J/mysql-connector-java-5.1.23.zip

# unzip mysql-connector-java-5.1.23.zip

cp /opt/mysql-connector-java-5.1.23/mysql-connector-java-5.1.23-bin.jar /opt/red5/webapps/openmeetings/WEB-INF/lib

# rm mysql-connector-java-5.1.23.zip
# rm -R mysql-connector-java-5.1.23

# cd /opt
# mv red52 /usr/lib
# chown -R nobody /usr/lib/red52

INSTALL JOD CONVERTER

# cd /opt
# wget http://jodconverter.googlecode.com/files/jodconverter-core-3.0-beta-4-dist.zip
# unzip jodconverter-core-3.0-beta-4-dist.zip
# rm jodconverter-core-3.0-beta-4-dist.zip

------- Jalankan red5 script --------

https://cwiki.apache.org/confluence/download/attachments/27838216/OpenMeetings+2.x+run+script+Ubuntu.zip?version=1&modificationDate=1360140102000

download ke folder /opt/OpenMeetings 2.x run script Ubuntu.zip

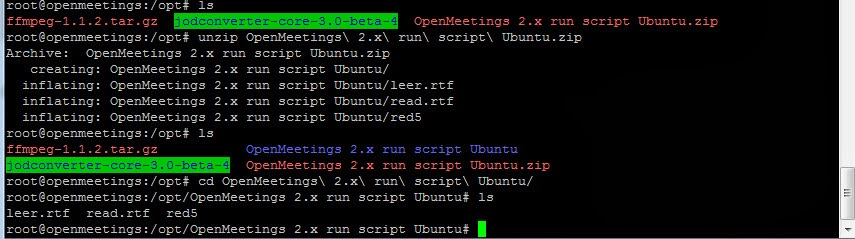

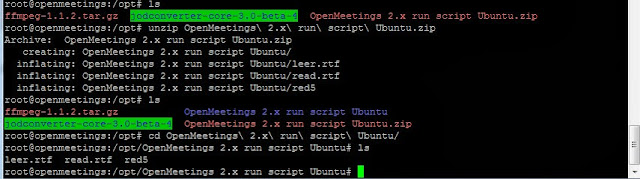

# unzip OpenMeetings 2.x run script Ubuntu
# vi red5

ubah pada baris ini , sesuai dengan direktori red5 yaitu /usr/lib/red52

RED5_HOME=/usr/lib/red52 (line 9)

save dan exit

Copy file red5 ke : /etc/init.d

cp red5 /etc/init.d/

berikan execute permission pada file red5

chmod +x /etc/init.d/red5

Untuk menjalankan red5 :

/etc/init.d/red5 start (start service)

/etc/init.d/red5 stop (stop service)

/etc/init.d/red5 restart (restart service)

akan muncul text report seperti dibawah ini , jgn khawatir ini akan bekerja tunggu beberapa saat ..

start-stop-daemon: --start needs --exec or --startas
Try 'start-stop-daemon --help' for more information.

menuju ke browser : http://localhost:5080/openmeetings/install

saat ini saya akses ke http://192.168.1.168:5080/openmeetings/install

lanjutkan : Continue STEP 1

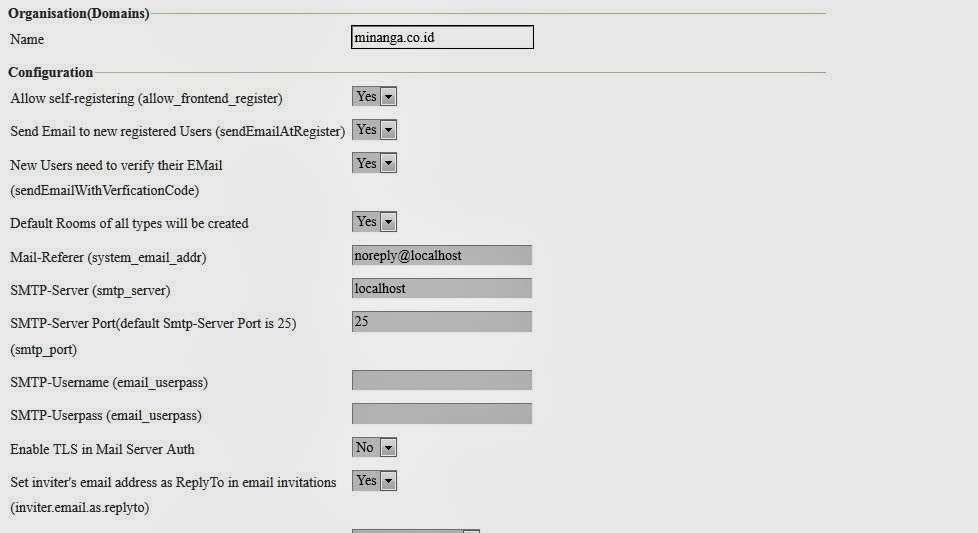

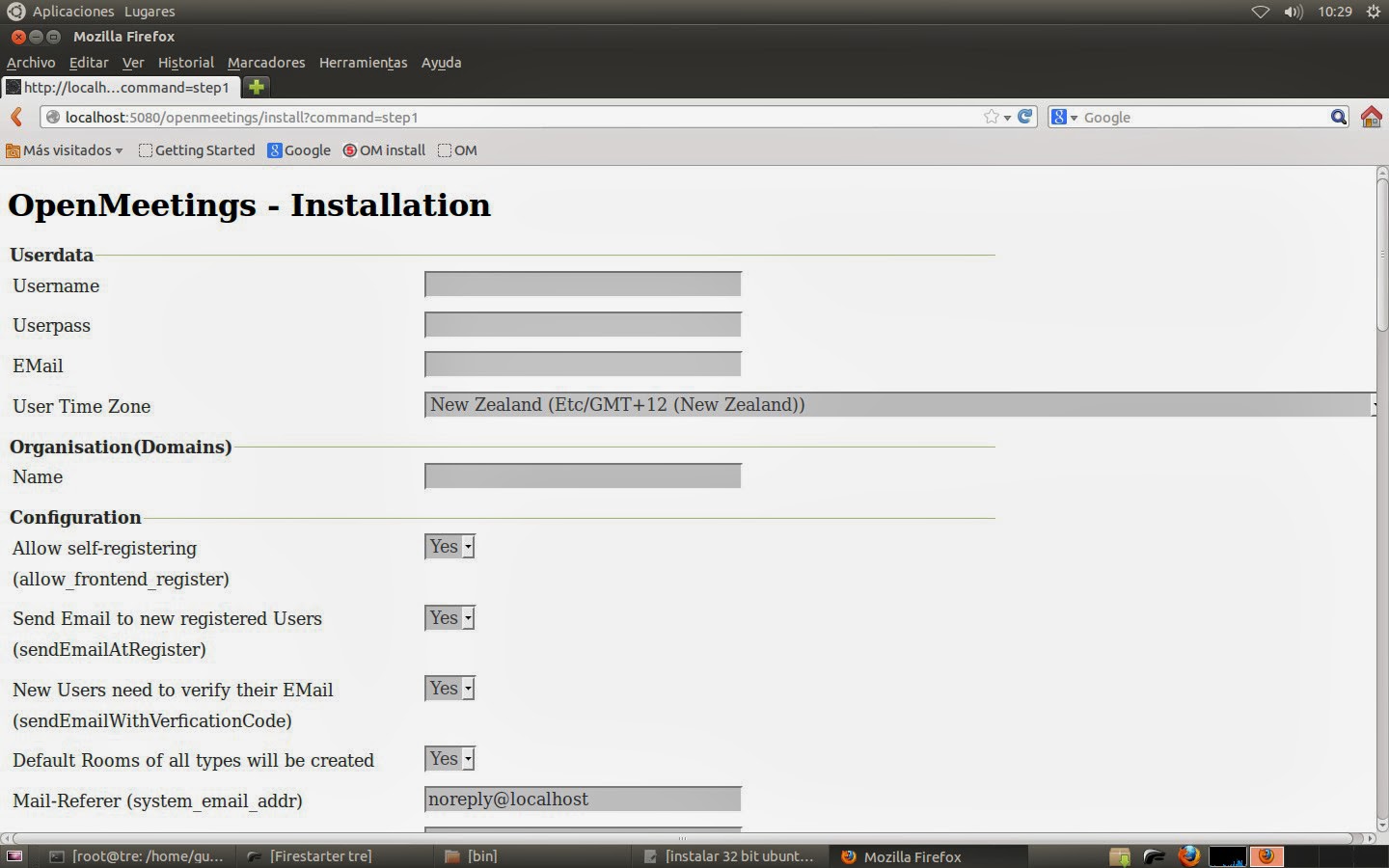

silahkan isi nama administrator , password , alamat email dan timezone

FFMPEG Path = /usr/local/bin
JOD Path = /opt/jodconverter-core-3.0-beta-4/lib

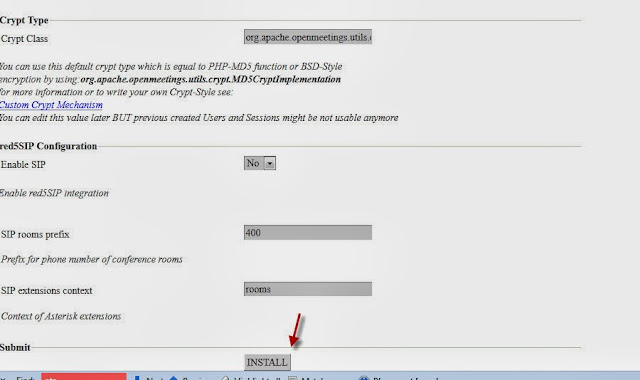

Klik Install , tunggu beberapa saat , sampai muncul seperti dibawah ini :

akses openmeetings : http://192.168.1.168:5080/openmeetings

untuk membuat user :

openmeetings sudah siap digunakan ,ke Start

pilih rooms , join room , kemuadian allow mic dan camera ,,,

Enjoyy....

Sekian , semoga membantu ....

Taufan M
********************************************************************************
Update Link Openmeeting 3.1.0.r

https://builds.apache.org/job/openmeetings/lastSuccessfulBuild/artifact/singlewebapp/dist/apache-openmeetings-3.1.0.r1572371-27-02-2014_0110.tar.gz

Penyesuaian Konektor mysql (apabila link diatas tidak bisa)

cd /opt

# wget http://mirrors.dedipower.com/www.mysql.com/Downloads/Connector-J/mysql-connector-java-5.1.2-beta.zip

# unzip mysql-connector-java-5.1.2.zip

# cp /opt/mysql-connector-java-5.1.2/mysql-connector-java-5.1.23-bin.jar /opt/red5/webapps/openmeetings/WEB-INF/lib

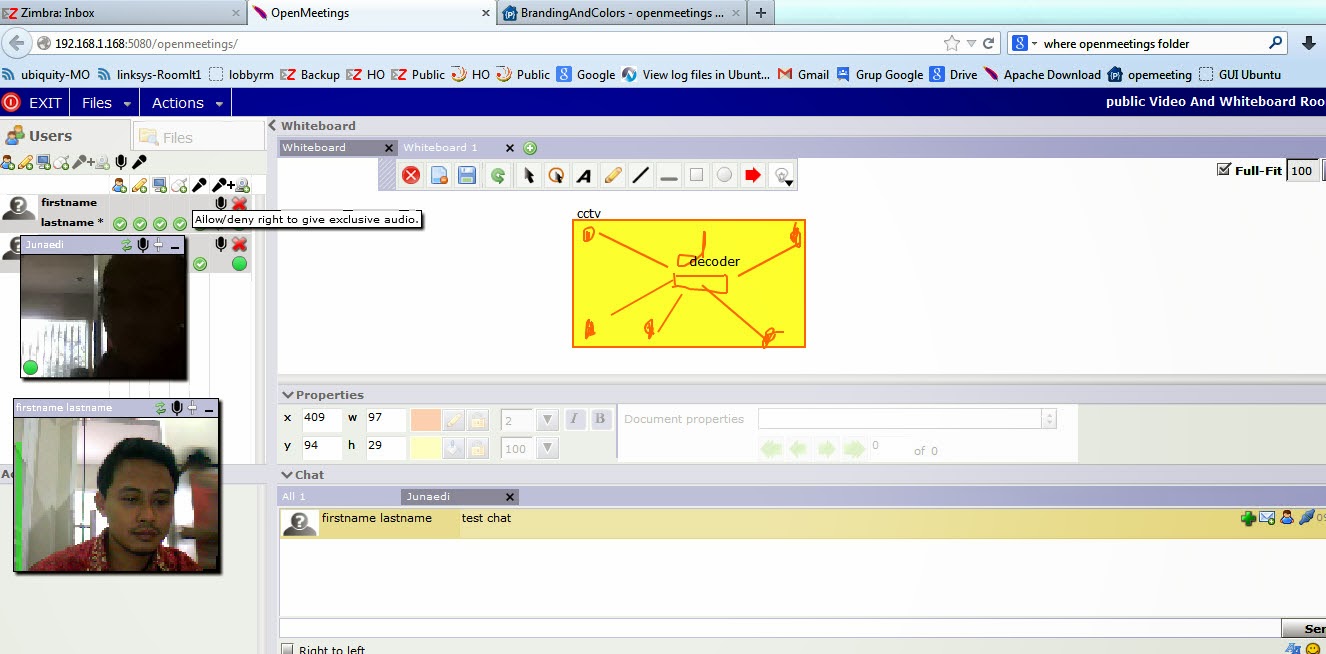

Tampilan Openmeeting 3.0.1.r.xxx
